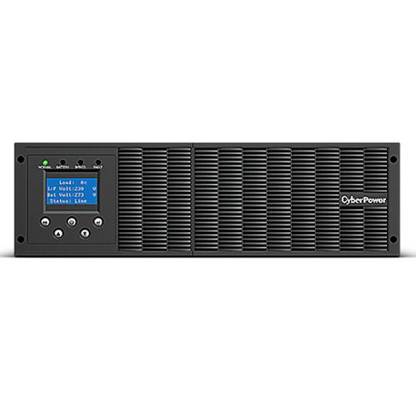

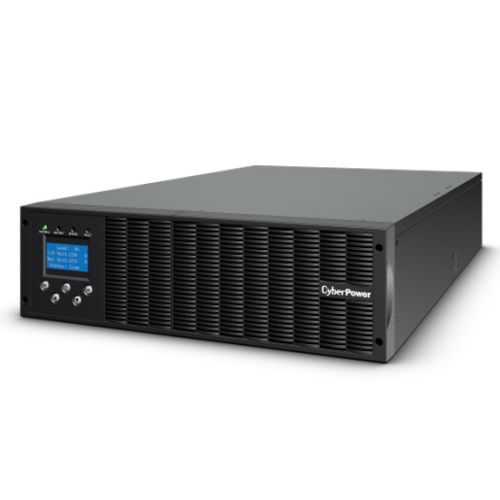

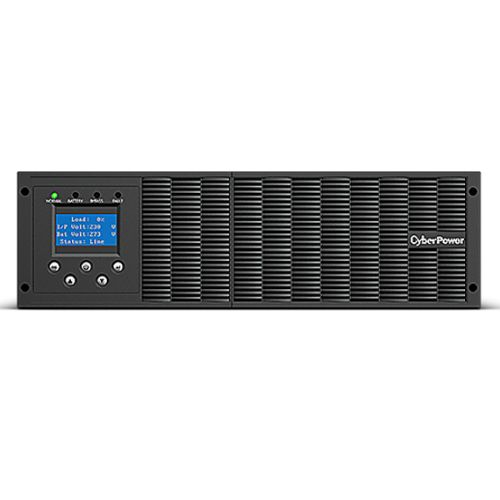

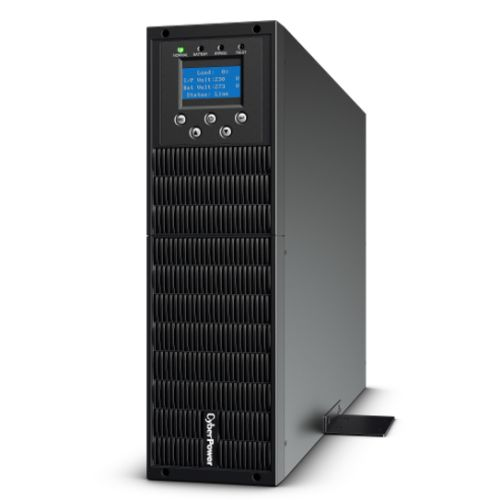

CyberPower Online XL Smart App 10,000VA Double Conversion 3U Rack/Tower UPS, 9000W, LCD Display, 1x Hardwire Terminal Block, Ext. Battery Module

CyberPower Online XL Smart App 10,000VA Double Conversion 3U Rack/Tower UPS, 9000W, LCD Display, 1x Hardwire Terminal Block, Ext. Battery Module

CyberPower Online Rackmount XL Series, 10000VA/9000W, 1 x Hardwire Terminal Block, Business Software, Rack/Tower



Specifications:
- Battery Protection : Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse Overload Protection (Line Mode): 105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec Overload Protection (Battery Mode): 105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec Overload Protection (Bypass Mode): 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
- Inversion : Pure Sine Wave
- Recharge Time : -
- Accessories : Rackmount Rail Parallel Port Cover Plate Terminal Cover Terminal Splices Screw Kit USB Cable
- Runtime : -
- Audible Indicators : Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
- Visual Indicators : LCD Panel: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting LED Indicators: Line Mode, Battery Mode, Bypass Mode, UPS Fault
- UPS Topology : Online Double Conversion
- Warranty : 2 Years - direct with CyberPower
- #Hide#Capacity (Watts) : 9000 W
- Typical Protection : Surge Suppression: 445 Joules EMI/RFI Filtration
- Dimensions : (WxHxD) 551 x 283 x 867 mm
- Input Voltage : Nominal Input Voltage: 230 Vac Input Voltage Range: 110 ~ 276 Vac Adjustable Voltage Range: 0~80% Load for 110 ~ 276 Vac 0~100% Load for 176 ~ 276 Vac
- Transfer Time : 0 ms
- Battery Type : -
- Weight : 28.3 kg

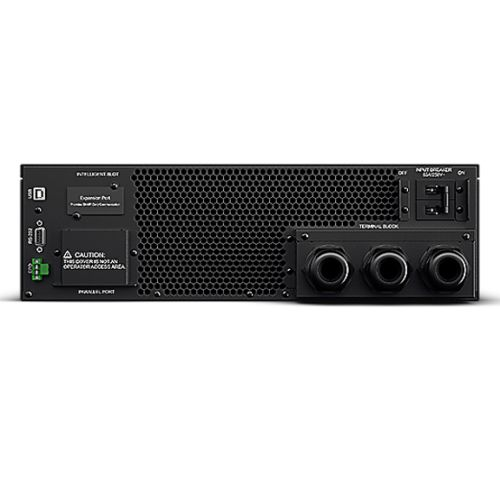

- Interfaces : Serial Port USB Port SNMP/HTTP Network Slot EPO Port Input Terminal Block Output Terminal Block Parallel Port
- Package Type : Retail
- #Hide#Capacity (VA) : 10,000 VA
- Type : Rackmountable UPS
- Maximum Capacity : 10,000VA / 9000W
- Environment : Operating Temperature: 32 ~ 104°F Operating Temperature: 0 ~ 40 °C Operating Relative Humidity (Non-condensing): 0 ~ 90 % Operating Elevation: <1000, Load Derated 1% per 100m from 1000m and 2000m Storage Temperature: 5 ~ 113 °F Storage Temperature: -15 ~ 45 °C Storage Relative Humidity (Non-condensing): 0 ~ 95% Storage Elevation: 0-49,213 feet (0-15,000 meters) Online Thermal Dissipation: 2672 BTU/hr Audible Noise at 1.5M from Surface of Unit: 60 dBA
- Additional Features : See Overview
- Software : PowerPanel Business (Recommended)
- Package Weight : 28.3000 kg
- Output Voltage : 208 ± 1 % 220 ± 1 % 230 ± 1 % 240 ± 1 %
